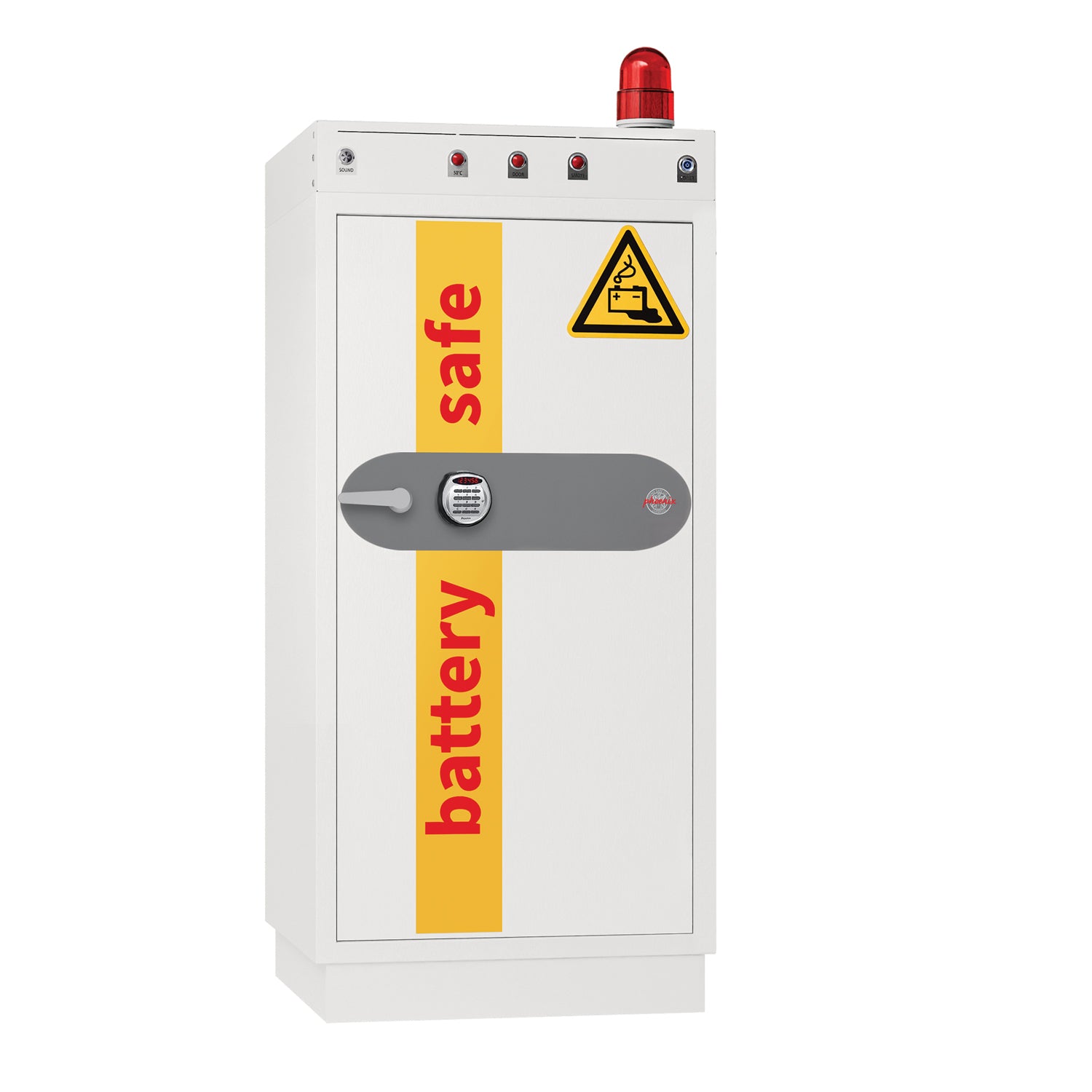

Phoenix Battery Commander Pro BS1943 Lithium Battery Storage & Charging Cabinet
🚚 Free UK Mainland Delivery* (Exclusions Apply)
📦 Ask a question: Send us an email at sales@storagenstuff.co.uk
Delivery: 5 Working Days - OUT OF STOCK - Due 4th Sep
Phoenix Battery Commander Pro BS1943 Lithium Battery Storage & Charging Cabinet
Phoenix Battery Commander Pro BS1943 Lithium Battery Storage & Charging Cabinet
The Phoenix Battery Commander Pro BS1943 is a purpose-designed lithium battery storage and charging cabinet for businesses that need a safer, controlled environment for storing and charging lithium-ion batteries.
Designed for commercial and industrial environments, the Battery Commander Pro provides dedicated storage for rechargeable batteries commonly used with power tools, electrical equipment, e-bikes, mobility equipment, drones, and other battery-powered devices.
The BS1943 range features a choice of locks including standard key locking, electronic locking, or a more sophisticated fingerprint lock. It provides approximately 199 litres of internal storage capacity, with a maximum battery capacity of 7,500 Wh. The cabinet is supplied with a 4-way electrical power strip, allowing compatible lithium-ion batteries to be charged within the cabinet.
The Battery Commander Pro range has been tested and certified in accordance with VDMA 24994:2024-08, a recognised standard covering fire-protection requirements for the storage and charging of lithium-ion batteries. The cabinet is designed to help businesses manage the risks associated with lithium-ion battery storage and charging, including the potential for thermal runaway.
The cabinet incorporates safety monitoring and warning features designed to provide an additional level of protection during battery storage and charging. Heat and smoke development can be detected, whilst visual and audible warnings can alert users to potential issues. A ventilation system helps manage heat generated during normal operation, with provision for connection to an additional fan or external extraction system where required.
Key Features
- Designed for lithium-ion battery storage and charging
- Tested and certified to VDMA 24994:2024-08
- Maximum capacity of 2,500Wh
- Approximately 199 litre internal storage capacity
- Choice of locks - Key, Electronic or Fingerprint
- Supplied with 4-way power strip
- Suitable for commercial and industrial environments
- Designed to help manage lithium-ion battery fire risks
- Heat and smoke monitoring
- Audible and visual warning functions
- Passive ventilation system
- Provision for additional ventilation or external extraction
- High-strength steel construction
- White finish
- Heavy-duty cabinet weighing approximately 210 kg
Why Choose the Phoenix BS1943?
The Phoenix Battery Commander Pro BS1943 combines dedicated lithium battery storage with charging functionality in a robust, purpose-designed safety cabinet. Its lock choices, 7,500 Wh capacity and integrated 4-way power strip make it particularly suitable for workplaces where rechargeable batteries need to be stored and charged regularly.
The cabinet's VDMA 24994:2024-08 certification provides an important specification for organisations looking for a purpose-built lithium-ion battery storage and charging solution.
| External Dimensions | 1385mm H x 690mm W x 710mm D |
|---|---|
| Internal Dimensions | 980mm H x 510mm W x 400mm D |
| Door Swing | 650 mm |
| Handle Depth | 40mm |
| Capacity | 199 litres |
| Maximum Battery Capacity | 7,500Wh |
| Shelf Capacity | 2500Wh |
| Weight | Approximately 261kg |
| PDUs | 3 x 4 gang |
| Number of shelves | 2 |
| Number of Doors | 1 |

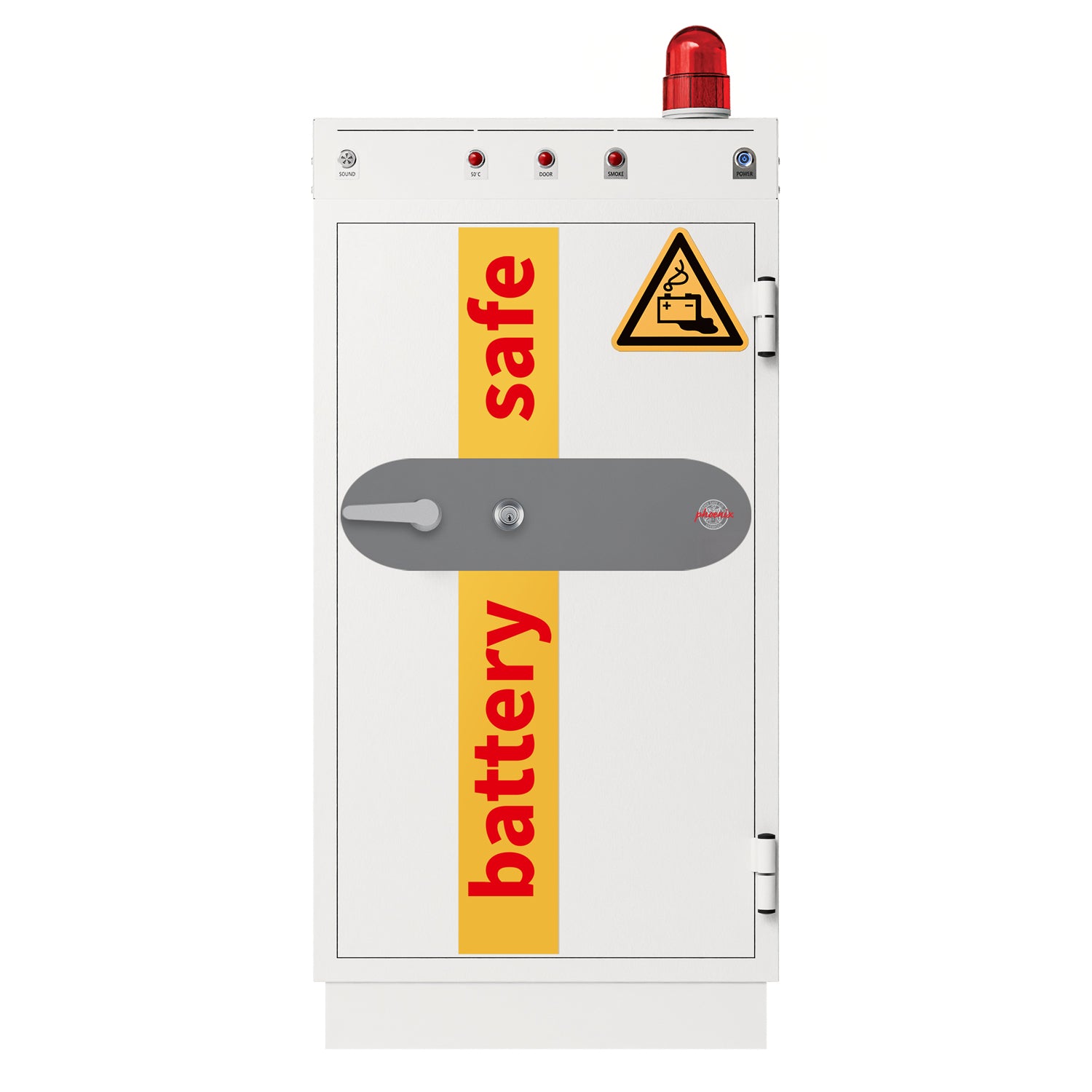

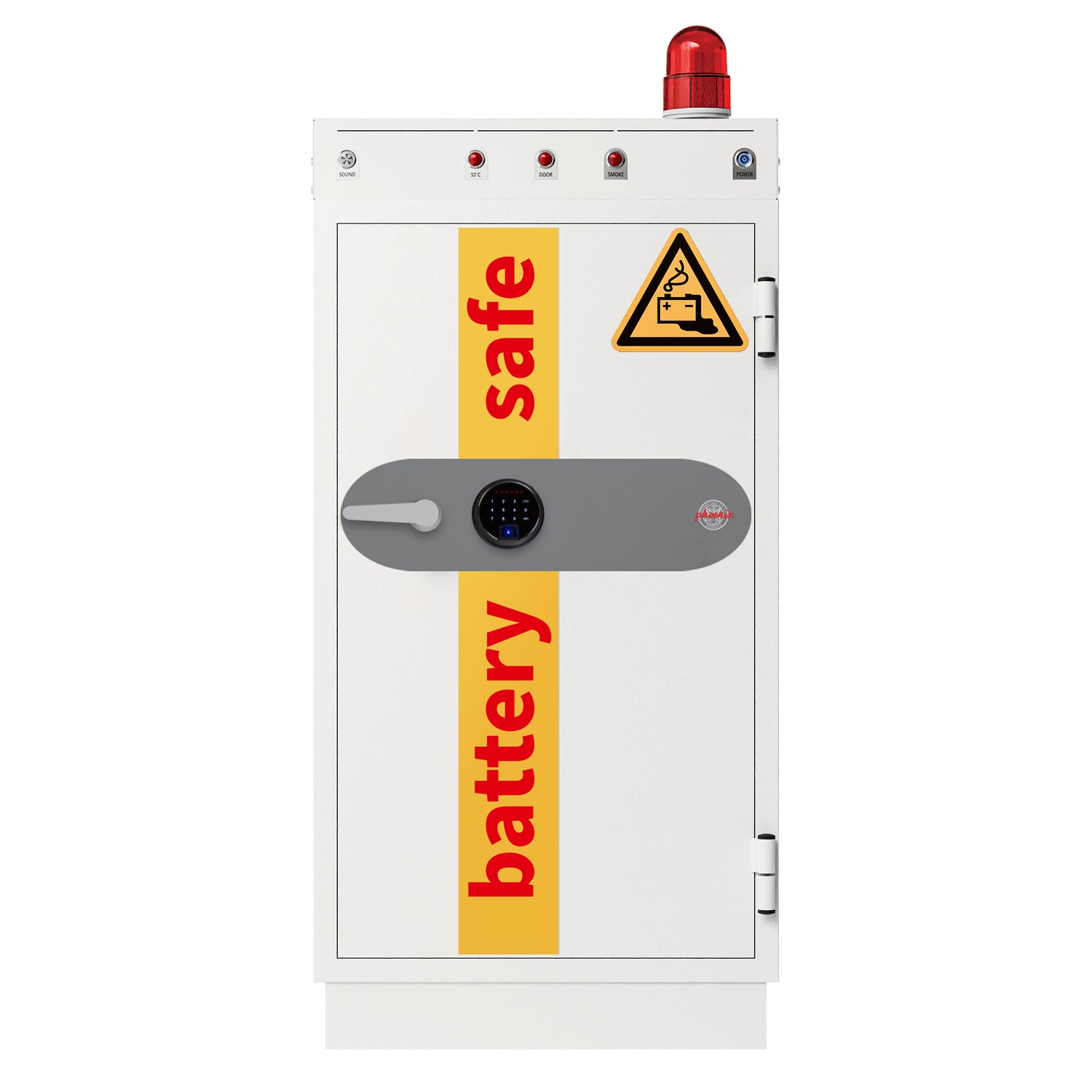

| Lock | Key lock with two keys Electronic lock with clear LED display Advanced high security touchscreen keypad & fingerprint Lock with clear LED display |
| Delivery Options | Door to door Ground floor and position – delivery and position to ground floor or upper floor via a suitable lift with no steps access or vehicle restrictions |
