Phoenix Battery Commander Pro BS1945 Lithium Battery Storage & Charging Cabinet
Phoenix Battery Commander Pro BS1945 Lithium Battery Storage & Charging Cabinet
The Phoenix Battery Commander Pro BS1945 is a large-capacity lithium-ion battery storage and charging cabinet designed to provide a secure and controlled environment for businesses storing and charging rechargeable batteries.
As a Size 5 Battery Commander, the BS1945 provides a substantial 12,500Wh battery capacity and 307-litre storage capacity, making it particularly suitable for workplaces that need to manage larger quantities of lithium-ion batteries.
The cabinet is certified to VDMA 24994:2004-08 by ECB.S, providing an independently tested solution for organisations looking for dedicated lithium battery storage and charging protection. The cabinet has been fire and impact tested from 9.1 metres, helping to demonstrate its resistance to the impact associated with falling through burning floors in a building.

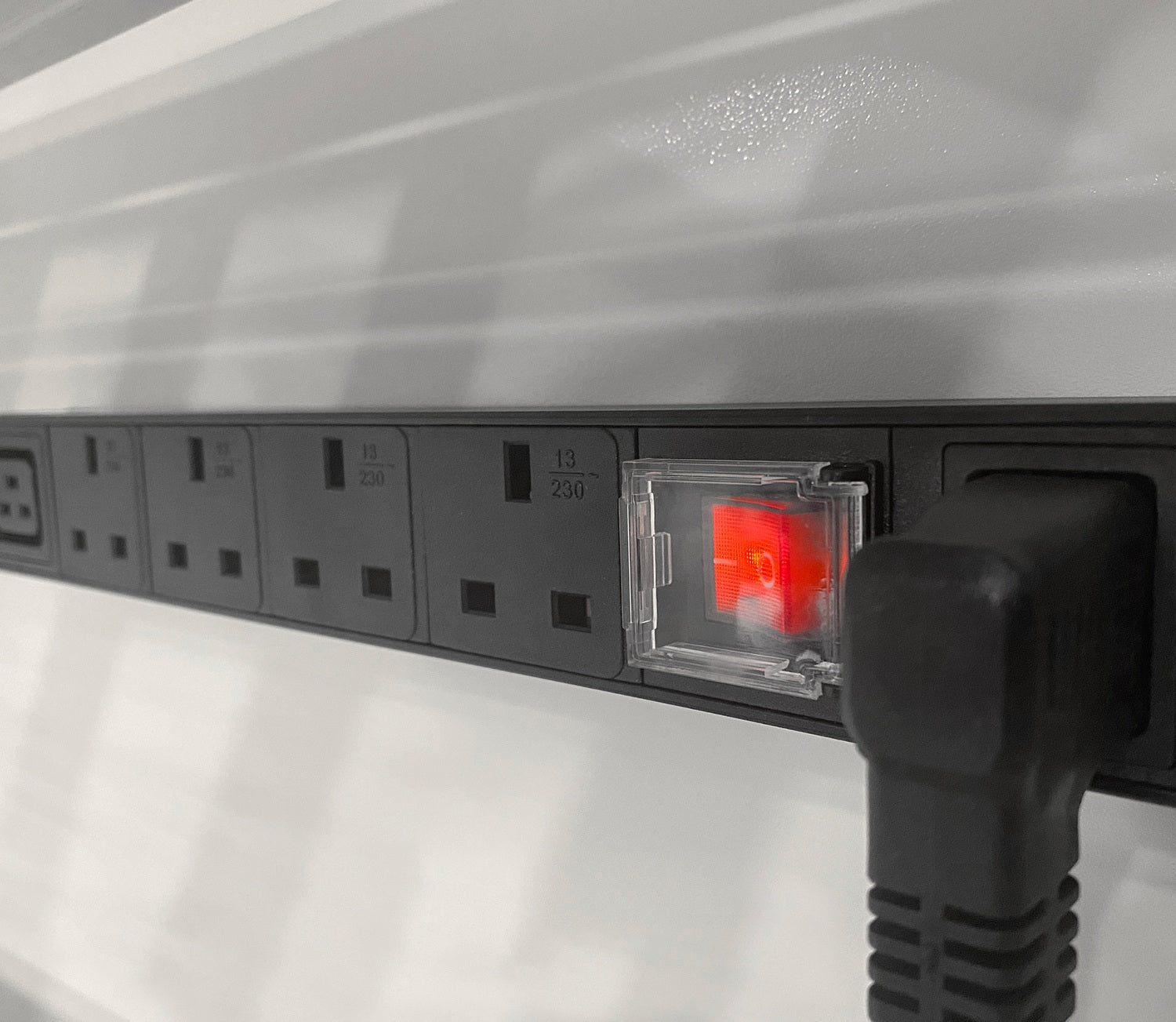

The BS1945 is fitted with a choice of lock options allowing access to the stored batteries to be controlled. It also incorporates five 4-gang PDUs, providing multiple power points for safely charging compatible lithium-ion batteries inside the cabinet.
Lithium Battery Fire Protection
Lithium-ion batteries can present a significant fire risk if damaged, defective, exposed to unsuitable temperatures or affected by thermal runaway. The Battery Commander Pro range has been specifically developed to provide dedicated storage and charging facilities for lithium-ion batteries.
The BS1945 features a double-wall cabinet construction, reinforced and insulated shelving, ventilation and integrated safety features designed to help manage the risks associated with lithium battery storage and charging.
The cabinet is supplied with an air exhaust duct for added ventilation, dedicated ducting to the outside is also strongly recommended to provide additional extraction in the event of thermal runaway.
Key Features
- Phoenix Battery Commander Pro BS1945
- Size 5 lithium battery storage and charging cabinet
- Certified to VDMA 24994:2024-08 by ECB.S
- 12,500Wh maximum battery capacity
- 307 litre cabinet capacity

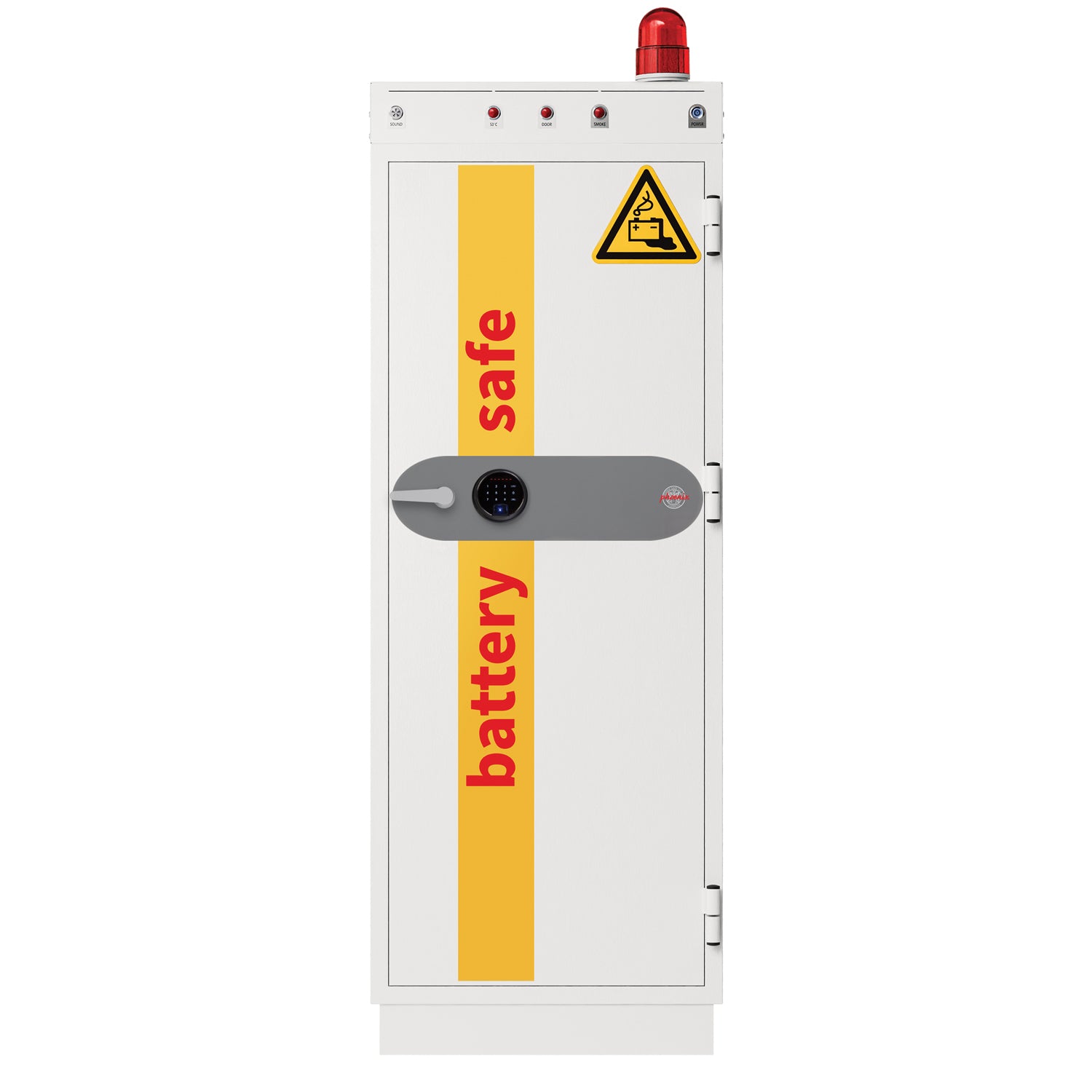

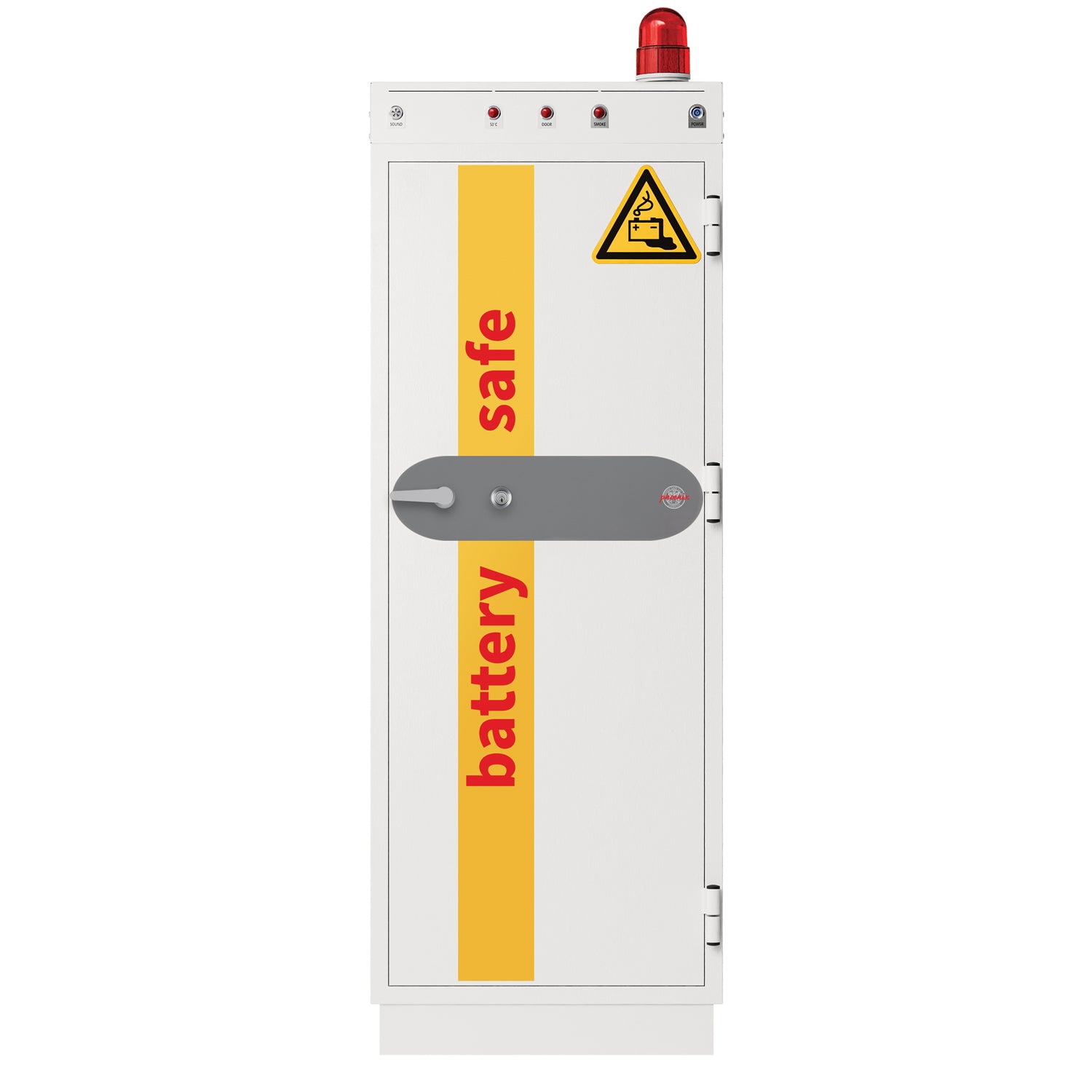

- Choice of locks - key, Electronic or Fingerprint
- 5 x 4-gang power distribution units (PDUs)

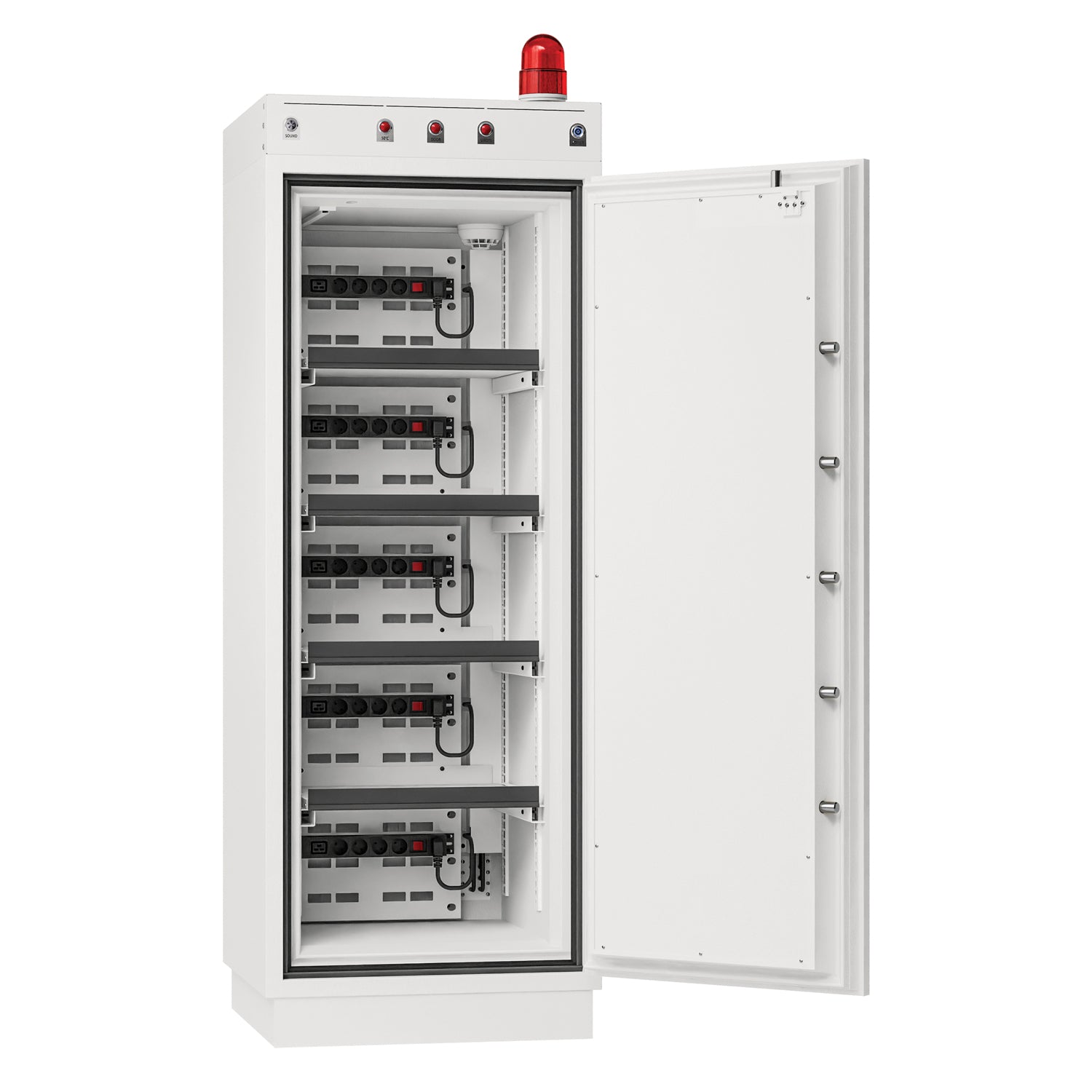

- 4 reinforced and insulated height-adjustable shelves
- Each shelf supports up to 100kg
- Fire and impact tested from 9.1 metres
- Air exhaust duct fitted as standard
- Dedicated external extraction strongly recommended by Phoenix
- Removable plinth for easier movement and emergency removal
- Robust construction for commercial and industrial environments
- 2-year materials and labour guarantee
Why Choose the Phoenix BS1945?
The Phoenix Battery Commander Pro BS1945 combines a high-capacity lithium battery storage with integrated charging facilities in a purpose-designed safety cabinet.
Its 12,500Wh capacity, four reinforced shelves and five 4-gang PDUs make it particularly suitable for businesses that need to store and charge a large number of lithium-ion batteries in one controlled location.
The three lock choices provide a straight forward way of restricting access to the cabinet, while the integrated ventilation, reinforced shelving and fire and impact testing provide additional protection for commercial and industrial battery storage applications.
| Model | BS1945 |
|---|---|
| Range | Battery Commander Pro |
| Size | 5 |
| External Dimensions | 1910mm H x 690mm W x 710mm D |
| Internal Dimensions | 1505mm H x 510mm W x 400mm D |
| Battery Capacity | 12,500Wh |
| Cabinet Capacity | 307 litres |
| Number of Shelves | 4 |
| Shelf Capacity | 100kg per shelf |
| PDUs | 5 x 4-gang |
| Number of Doors | 1 |
| Door Swing | 650mm |
| Handle Depth | 40mm |
| Weight | 416kg |
| Guarantee | 2 years |

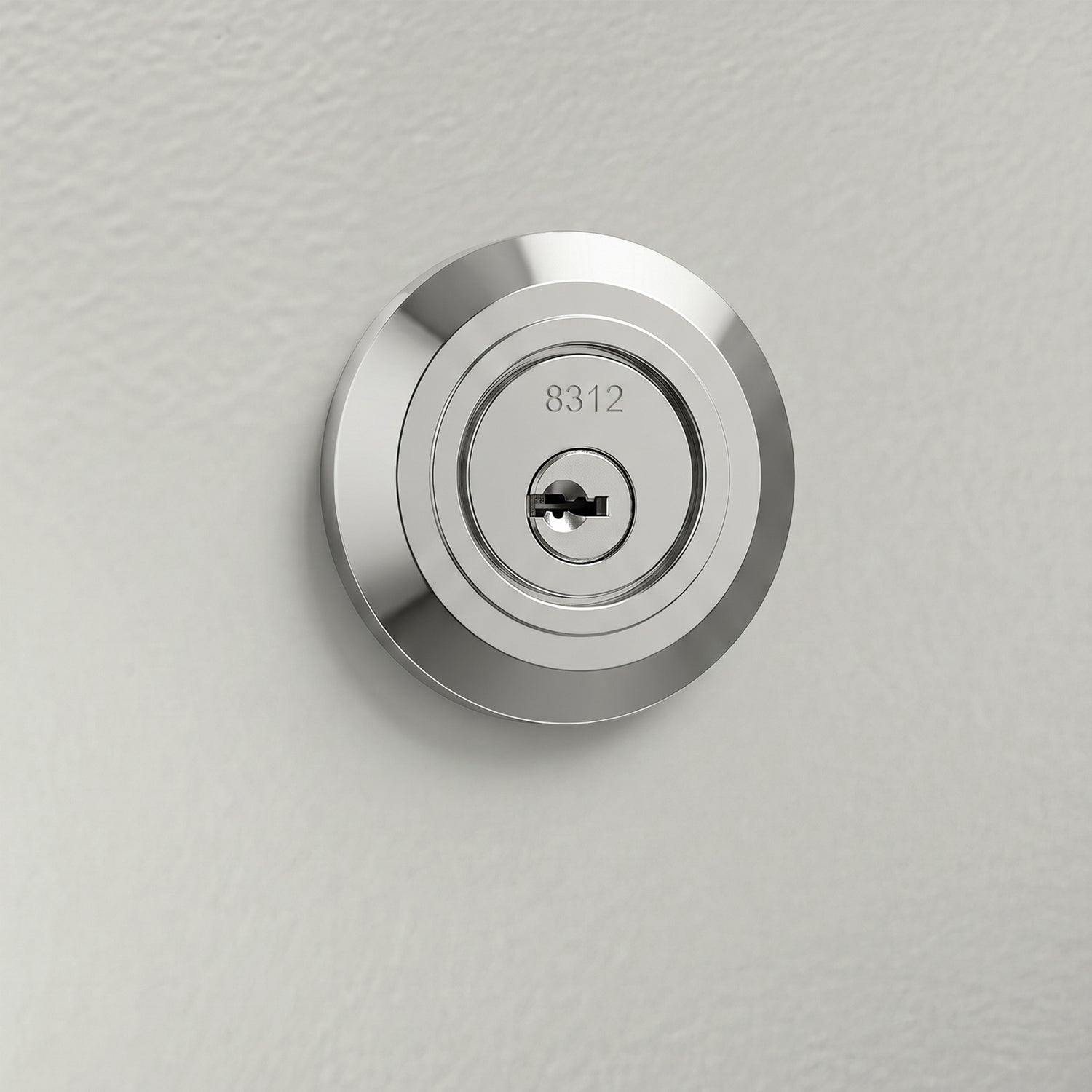

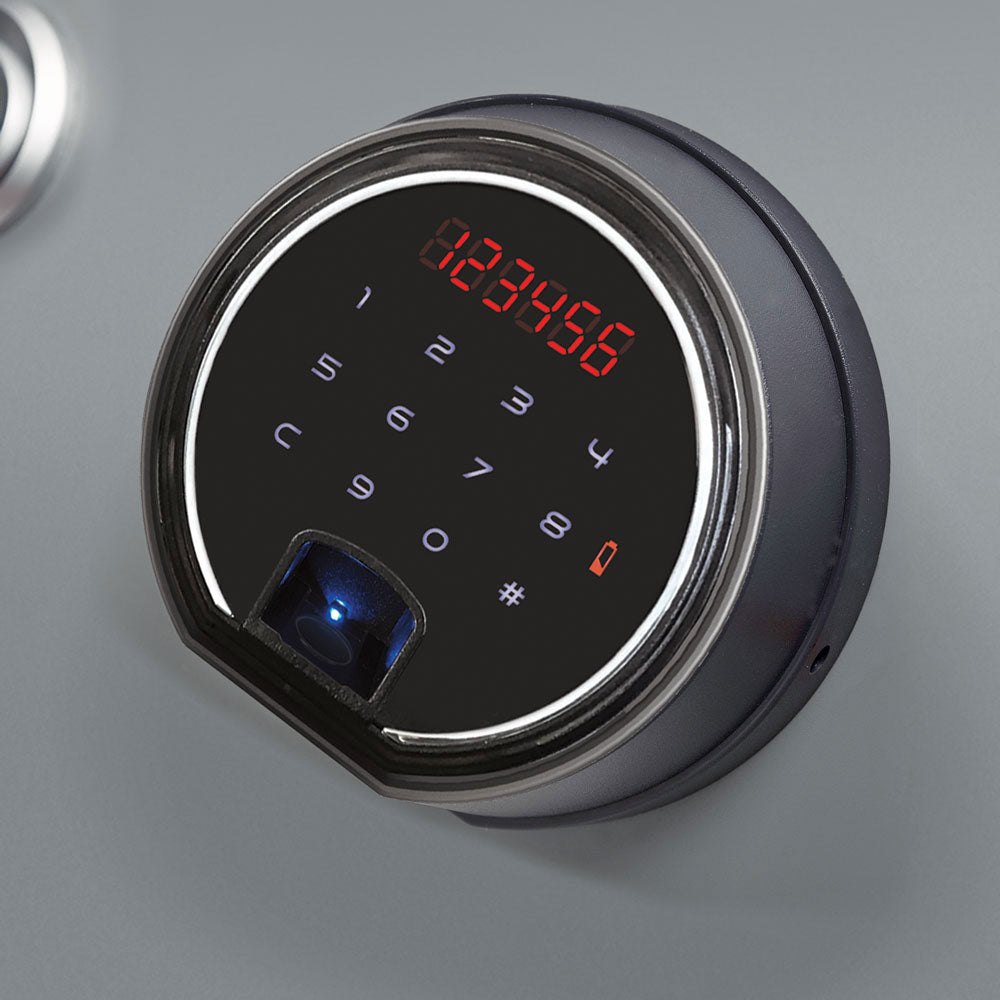

| Lock | Key lock with two keys Electronic lock with clear LED display Advanced high security touchscreen keypad & fingerprint lock with clear LED display |
| Delivery Options | Door to door Ground floor and position – delivery and position to ground floor or upper floor via a suitable lift with no steps access or vehicle restrictions |
