Phoenix Battery Commander Pro BS1946 Lithium Battery Storage & Charging Cabinet
Phoenix Battery Commander Pro BS1946 Lithium Battery Storage & Charging Cabinet
The Phoenix Battery Commander Pro BS1946 is a high-capacity lithium-ion battery storage and charging cabinet designed for businesses and organisations that need to safely store and charge substantial quantities of rechargeable batteries.
As a Size 6 Battery Commander Pro, the BS1946 is the largest cabinet in the BS1940 Series and provides an impressive 22,500Wh battery capacity alongside 569 litres of internal storage capacity. Its large format makes it particularly suitable for industrial, commercial and workplace environments where significant quantities of lithium-ion batteries need to be stored and charged in one dedicated location.
The BS1946 is fitted with a choice of lock options allowing access to the stored batteries to be controlled.
Lithium Battery Storage & Charging
The Battery Commander Pro range has been developed specifically for the storage and charging of lithium-ion batteries, helping businesses manage the risks associated with damaged, defective or overheating batteries and potential thermal runaway.

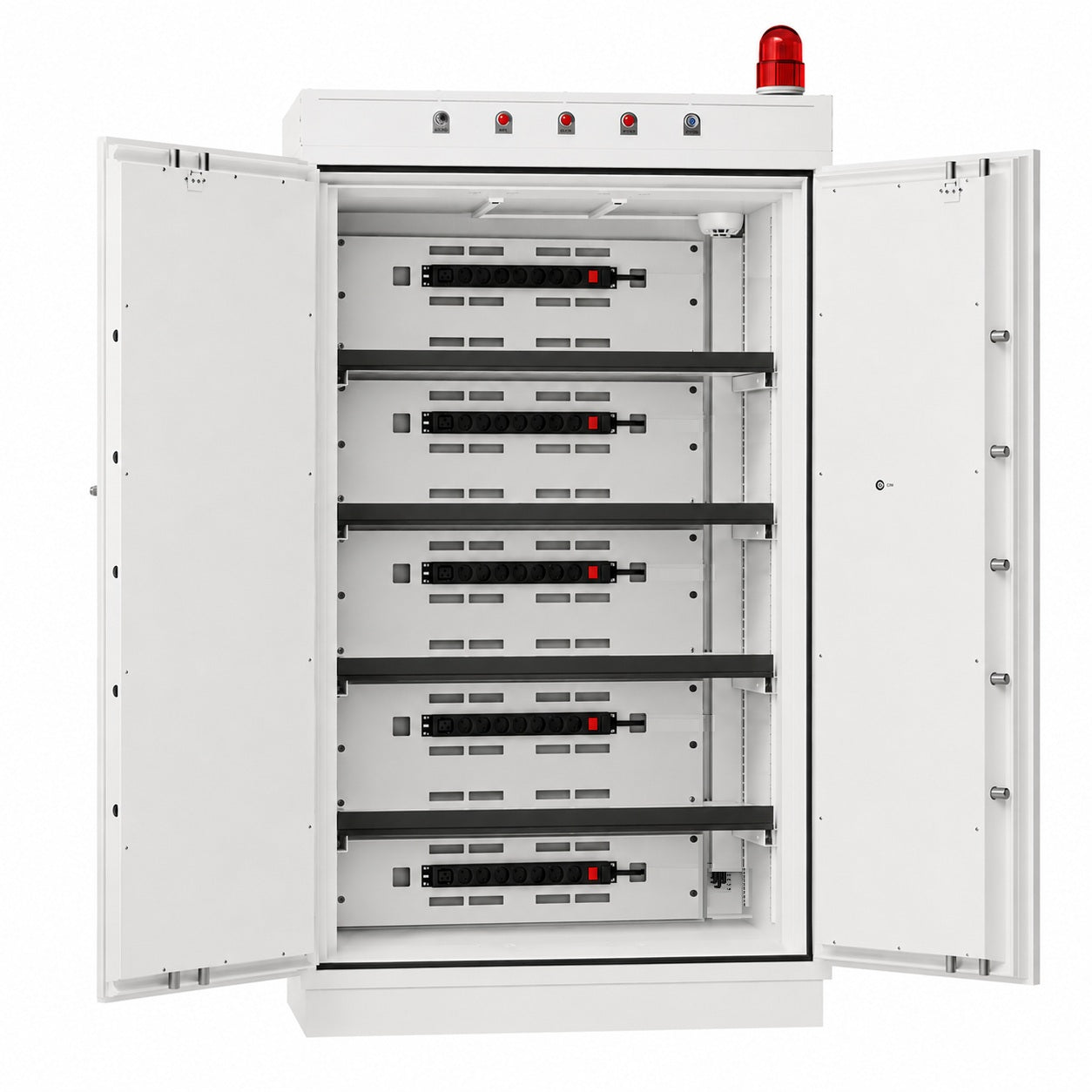

The BS1946 is supplied with 5 x 8-gang power distribution units (PDUs), providing multiple charging points for compatible lithium-ion batteries within the cabinet.
The cabinet is fitted with an air exhaust duct as standard to provide additional ventilation. Dedicated ducting to the outside is also strongly recommended to provide additional extraction in the event of thermal runaway.
The cabinet also incorporates reinforced and insulated height-adjustable shelving, with each shelf capable of carrying up to 100kg.
Fire & Impact Protection
The BS1946 is designed to help protect people and property from the potentially serious consequences of lithium battery fires.
The cabinet has been fire and impact tested from 9.1 metres, providing resistance to the impact associated with falling through burning floors within a building.
Key Benefits
- Phoenix Battery Commander Pro BS1946
- Size 6 lithium battery storage and charging cabinet
- High-security electronic locking system

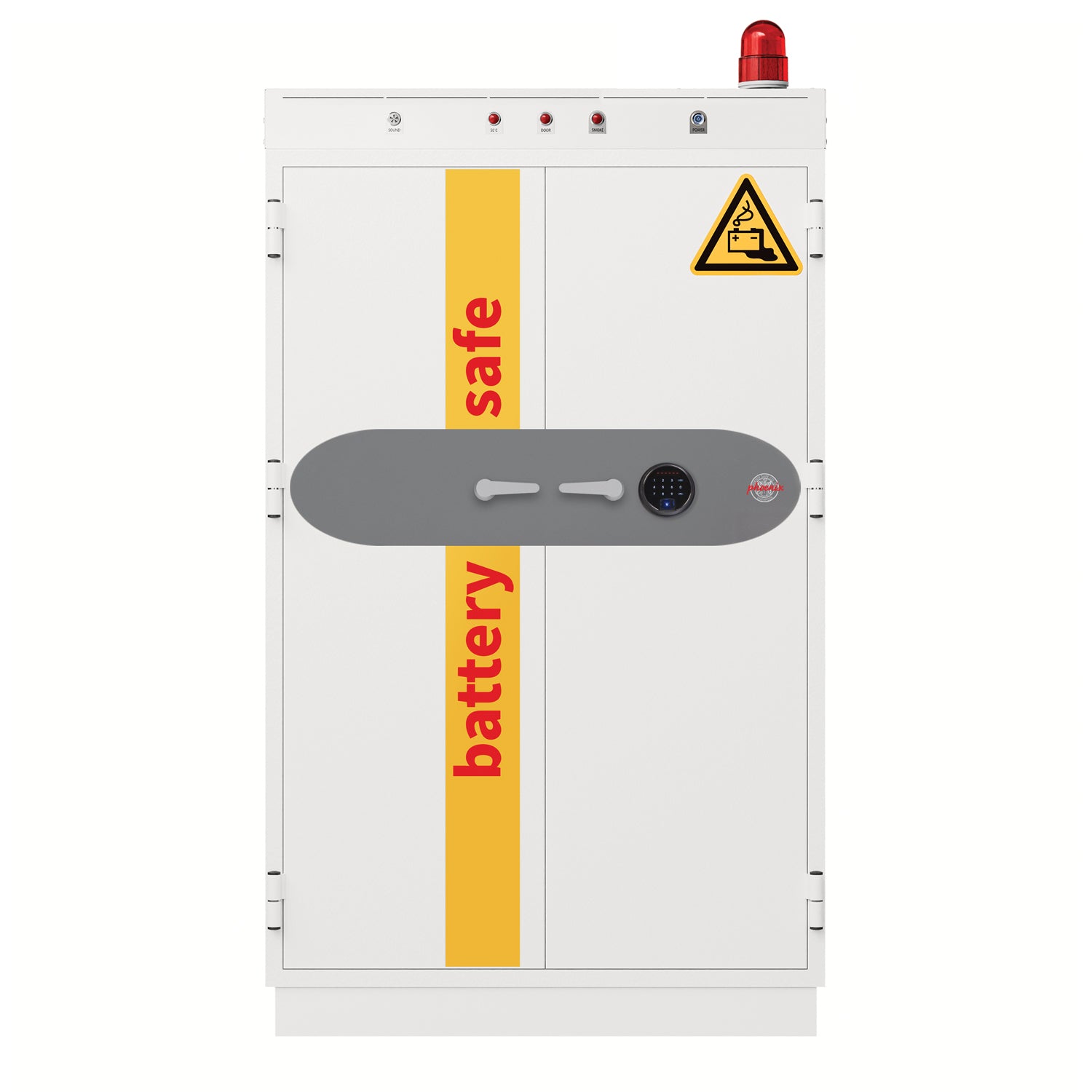

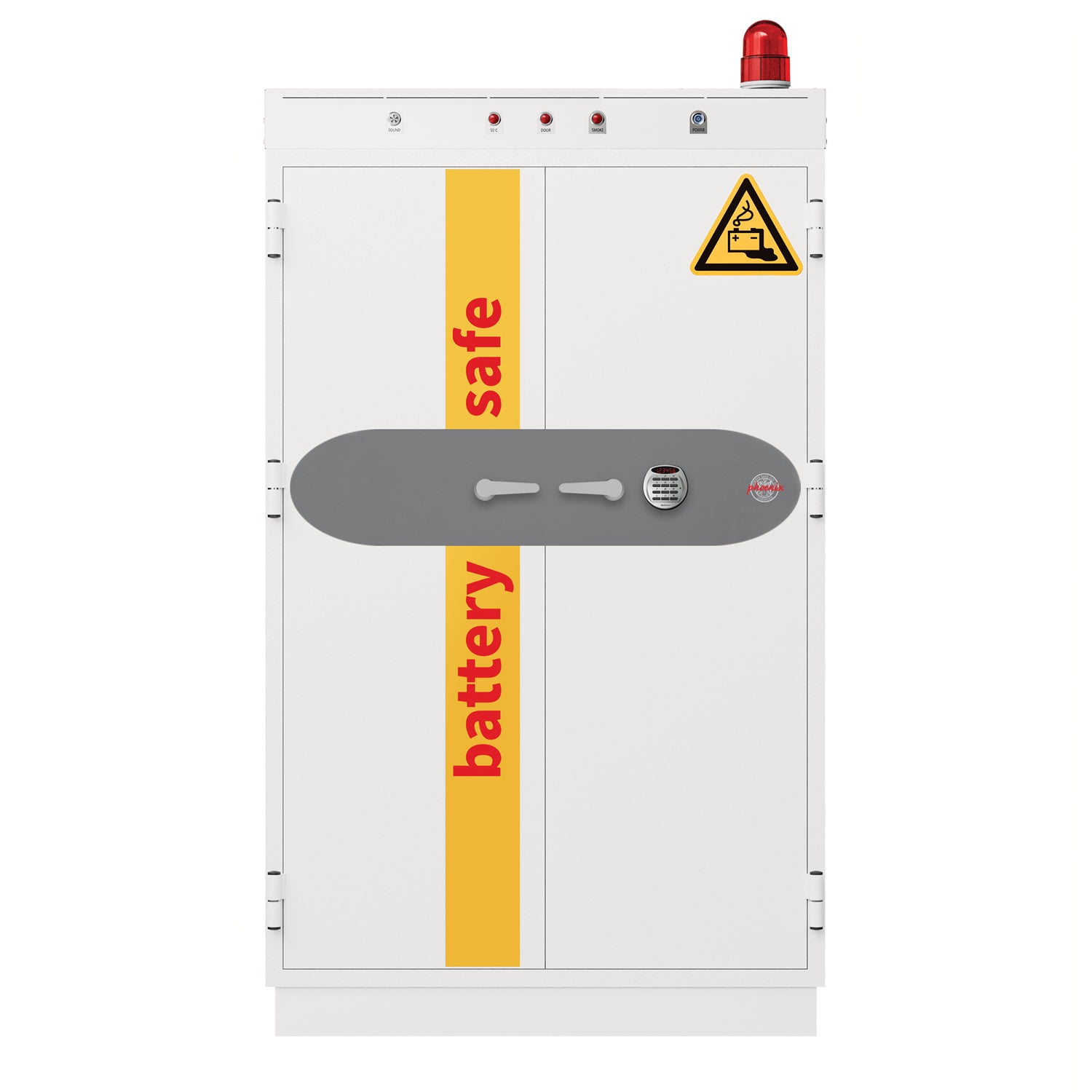

- Choice of locks - key, electronic and fingerprint
- 22,500Wh maximum battery capacity
- 569 litre storage capacity
- 5 x 8-gang power distribution units
- 4 reinforced and insulated adjustable shelves
- 100kg shelf capacity
- Air exhaust duct fitted as standard
- Dedicated external ducting recommended
- Fire and impact tested from 9.1 metres
- Removable plinth for easier movement and emergency removal
- 2-year guarantee
Why Choose the Phoenix BS1946?
The Phoenix Battery Commander Pro BS1946 provides one of the highest-capacity dedicated lithium battery storage and charging solutions in the Phoenix Battery Commander range.
With 19,000Wh battery capacity, 569 litres of storage, four 8-gang PDUs and three heavy-duty adjustable shelves, the BS1946 is designed for organisations that need considerably more battery storage capacity than smaller cabinet models can provide.
The integrated charging points, ventilation provision, reinforced shelving and 9.1 metre fire and impact testing make is a purpose-designed solution for commercial and industrial lithium battery storage and charging applications.
For businesses managing substantial quantities of rechargeable lithium-ion batteries, the BS1946 offers a dedicated alternative to storing batteries throughout workshops, warehouses or other general-purpose storage areas.
| Model | BS1946 |
|---|---|
| Range | Battery Commander Pro |
| Size | 6 |
| External Dimensions | 1910mm H x 1125mm W x 710mm D |
| Internal Dimensions | 1505mm H x 945mm W x 400mm D |
| Battery Capacity | 22,500Wh |
| Cabinet Capacity | 569 litres |
| Number of Shelves | 4 |
| Shelf Capacity | 100kg per shelf |
| PDUs | 4 x 8-gang |
| Number of Doors | 2 |
| Door Swing | 560mm |
| Handle Depth | 40mm |
| Weight | 610kg |
| Guarantee | 2 years |
| Lock | Key lock with two keys Electronic lock with clear LED display Advanced high security touchscreen keypad & fingerprint lock with clear LED display |
| Delivery Options | Door to door Ground floor and position – delivery and position to ground floor or upper floor via a suitable lift with no steps access or vehicle restrictions |
